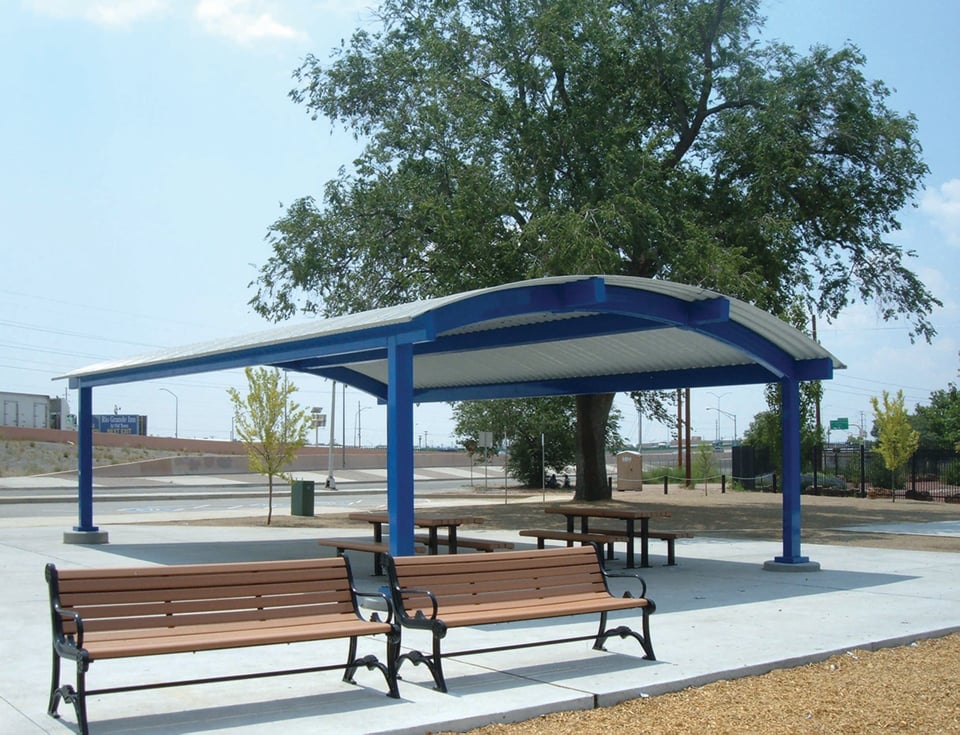

Barrel Vault Shelter with Curved Mega-Rib Roof Panels
Barrel Vault Shelter with Curved Mega-Rib Roof Panels.
- The standard minimum roof radius is 10’. Optional radii may be more than 10’.
- Roof deck: 24 ga.
- Curved Steel Panel Single Roof Configuration: All Sizes Two-Tier Vented or Clerestory Roof Configuration:
- All Sizes Three-Tier Vented or Clerestory Roof Configuration: 36’ and above
- See options and accessories pages for available upgrades.
Options & Accessories
ICON's line of Industry Standard Shelters can be modified and accessorized in many ways to produce a custom looking structure. You chan change the the overall size in one foot increments, raise or lower the roof pitch, raise the eave height, extend the eave overhang, and add a roof tier or two without adding custom design charges.
Accessorize the shelter with one or more of the many optional features, such as cupolas & weathervanes, handrails & overhead ornamentation, clocks, premium columns, enclosure panels, and display cases. ICON designers and engineers can work with you to modify the features of any shelter.
